Product Specification and Size :
1):Engine: WeiChai
2):Rated Power: 162Kw
3)Rated Lift:5T
4):Operating Weight: 17200kg
5):Certification: CE ISO GS EMC
6):Dimension: 8050*3024*3423mm
CE EPA Cheap Price 2 Ton,3 Ton,4 Ton,5 Ton,6 Ton Wheel Loader
1. Euro II/III, EPA, Tier 2/3/4 engine
2. 3/4 ways valves
3. EU farm shape/construction shape
4. LED lights, rear/front/top light, cabin interior light
5. heater, fans, radio, MP3, fire extinguisher in cabin

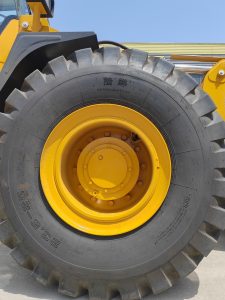

6. reverse alarm, luxurious cab,adjustable seat, best tire
7. optional items: floating function, rear camera, hydraulic joystick, electronic joystick, outer preheater for engine, hand brake, netural start, AC
8. optional attachments: quick hitch, pallet fork, log fork, snow blade, snow plow, snow sweeper, 4 in 1 bucket, grass cutter, digger, drilling, hydraulic hammer etc.

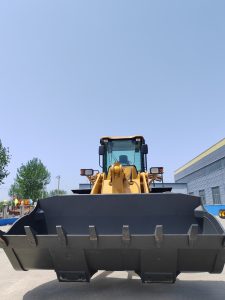

JW968 Wheel loader is a medium and long wheelbase energy-saving heavy loader, featuring high steadiness and elegance with new appearance.
Reliable
JW968 Wheel loader Low-speed high-torque engine, with strong power and high reliability
Equipped with SDLG’shome-made transmission and reinforced drive axles, with high reliability.
Adopt electric-driven pneumatic parking brake, with high safety and reliability.

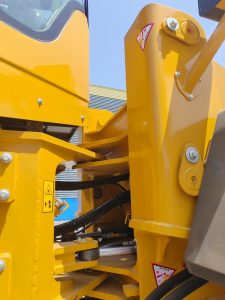

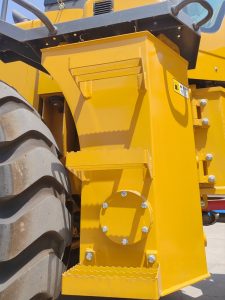

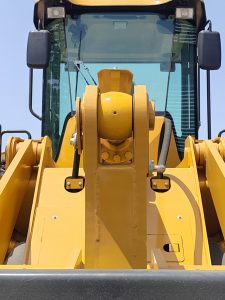

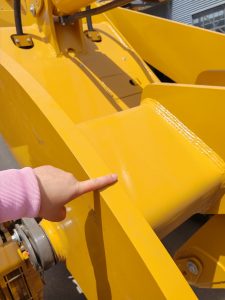

Adopt reinforced front and rear frames, with high strength and long life. The articulated points adopt tapered roller bearing and knuckle bearing to better adapt to harsh working conditions.
Comfortable
JW968 Wheel loader 15% increased space, enhanced sealing, spacious and bright, quiet and comfortable

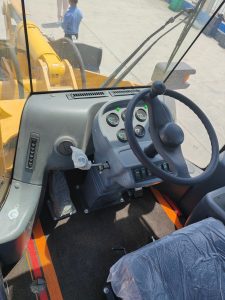

The digital panel display can showthe engine malfunctionsfor real-time, with high human-machine interactivity.
Adopted load-sensing full-hydraulic steering system; the duplex steering pump can realize automatic stepped-variable control, with high energy-saving, steady and comfortable operations.
Convenient
JW968 Wheel loader engine is fitted with standard malfunction diagnostic interface, ease to checkand maintain.
The electric system central control, easy to test and repair
| Overall dimension | |
| L*W*H | 8050*3024*3423mm |
| Wheel base | 3000mm |
| Min. ground clearance | 534mm |
| Max. dumping height | 3040mm |
| Dumping distance | 1150mm |
| Dumping angle | 45 |
| wheel tread | 2250mm |
| steering angle | 35 |
| horizontal crossing radius | 6995mm |
| Min. turning radius | 6040mm |
| Overall parameters | |
| Backet capacity | 3.0m3(optional 2.4-4.5) |
| Rated load | 5000kg |
| operating weight | 17100kg |
| Max. tractive force | 160kN |
| Max. breakout force | 170kN |
| Tipping load | 110kN |

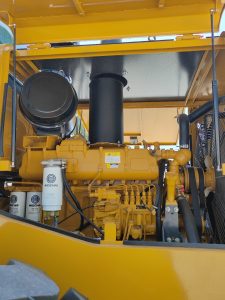

| Engine | |
| Model | WD10G220E23 |
| Type | Inline, watercooled, dry cylinder liner, direct injection |
| Rated power | 162kW |
| Rated speed | 2000r/min |
| Engine displacement | 9726ml |
| Max. torque | 980N.m |
| Emission standard | GB 20891-2007(China Phase II) |
| Min. fuel-consume ratio | 215g/kw.h |
| Transmission system | |
| Torgue converter | single-stage four-element |
| double-turbine hydraulic torque converter | |
| Transmission type | Planetary power shift |
| Gears | Forward 2 reverse 1 |
| Hydraulic system of working device | |
| Type | Pilot control |
| total time | 10s |
| Brake system | |
| Service brake type | Air over hydraulic disc type |
| Parking brake type | Electric pneumatic internal expansion shoe type |
| Steering system | |
| Type | Load sensing full hydraulic articulated steering |
| System pressure | 16 Mpa |
| Fill capacity | |
| Fuel | 260L |
| Hydraulic oil | 240L |
| Engine | 20L |
| Transmission | 45L |
| Drive axle | Forward 26L+ reverse 26L |
| Braking system | 4L |
