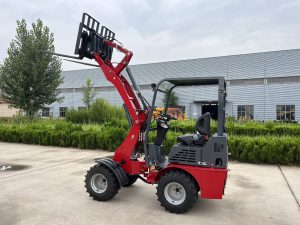

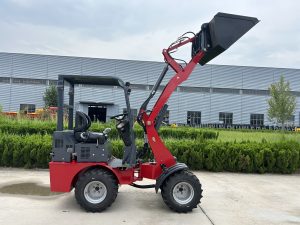

Product Specification and Size :
1):Type: Mini Loader Small Loader Compact Loader;
2):Power: 18.5kw(24.8BHP);
3):Bucket: 0.3m3;
4):Tipping Load In Shovel, Vehicle: 800kg;
5):Operating Weight: 1470kg;
6):Drive Mode:Fully Hydraulic

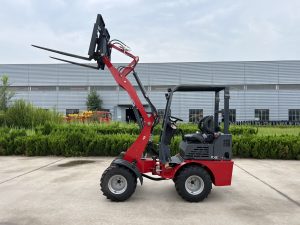

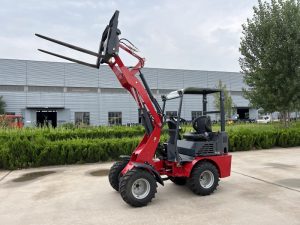

DESCRIPTION OF Compact Mini Loader
Mini Loader Excellent performance

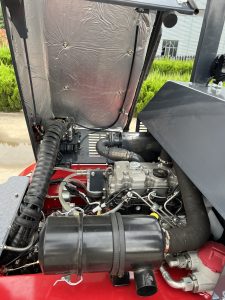

- Perkins power features low energy consumption and environmental protection.

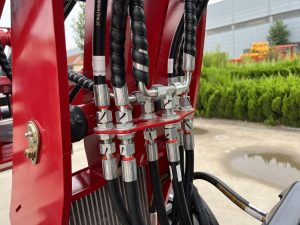

- The closed hydrostatic system has the feature of lower energy consumption.

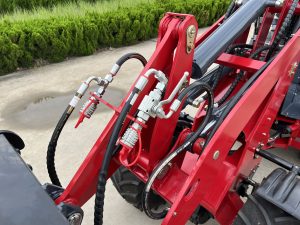

- Simple quick-change construction can meet multipurpose operation of users.

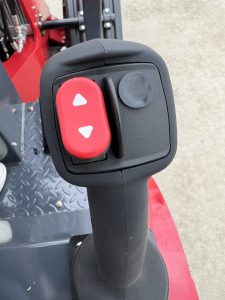

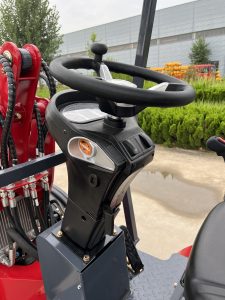

- The integrated multi-functional control handle makes operation simple.

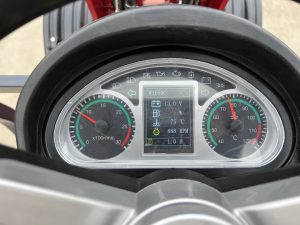

- The monitor has the LED showing of fuel level by stages.
- The unique frame hinge type is compacted and durable.

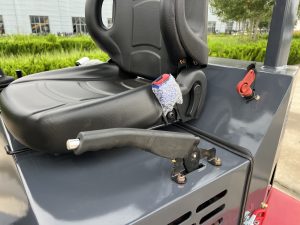

- The widely applied broad-face tyre and damping seat is safe and comfortable.
- Small working radius, mobile and flexible.
Specifications and overall dimensions
| Model | JW403J-11 |
| Rated power | 18.5kw(24.8BHP) |
| Rated speed | 2800rpm |
| Maximum torque | 67Nm |
| The ratio of fuel consumption | 252g/kwhr |
| Dimensions | |
| Body length | 2750mm |
| Body width(reverse tyre) | 1150mm |
| Body height | 2050mm |
| Minimum ground clearance | 200mm |
| Maximum dumping height | 2000mm |
| Dumping reach | 600mm |
| Wheel base | 1340mm |
| Performance parameters of the machine | |
| Bucket | 0.3m3 |
| Tipping load in shovel, vehicle straight raight straight 798kg | 798kg |
| Tipping load in shovel, vehicle at 68° | 498kg |
| Operating weight | 1470kg |
| The sum of the work device | 8s |
| Driving speed | 0-17km/h |
| Minimum turning-circle radius | |
| Outside face of bucket | 1989mm |
| Outside face of tyre | 1469mm |
| Tyre specifications | 27*8.5-15TL/26×12-12 |
| Maximum turning angle | ±68° |
